40kW Power Supply for Ultra-Fast Charging Stations: REG1K0110U Module

40kW 1000V Power Supply for the New Era of Electric Mobility

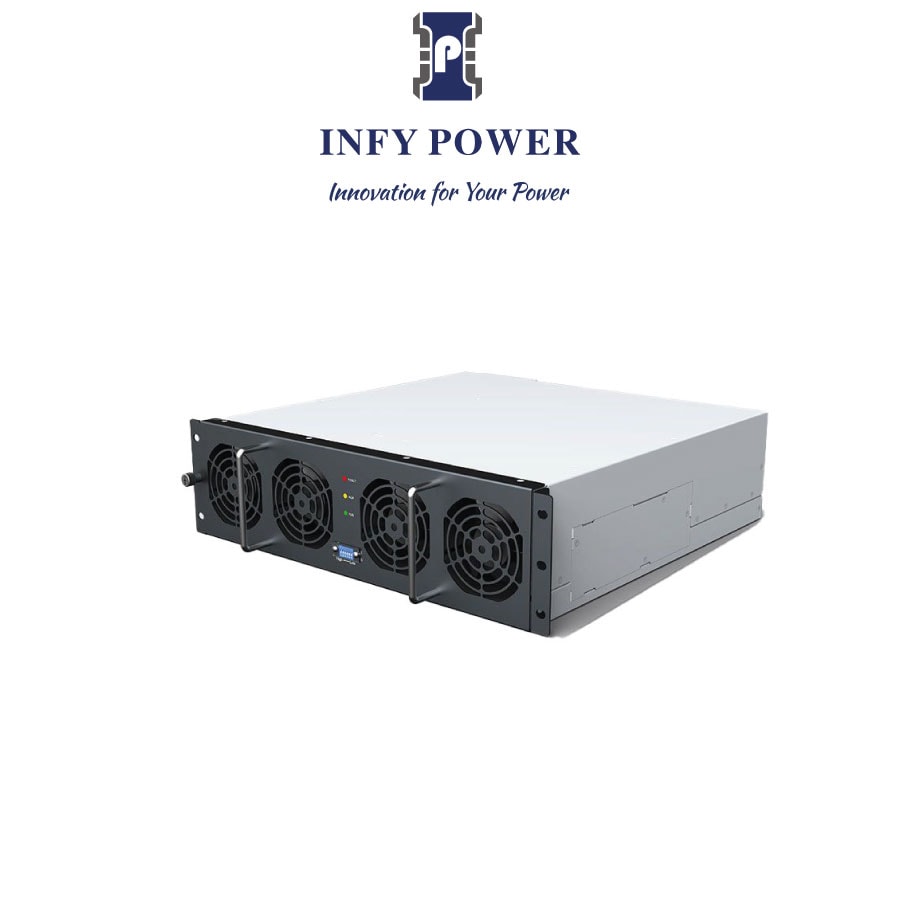

40kW power supplies, ac/dc, DC charging stations: these are the key terms describing the ongoing revolution in the world of electric mobility, with the advent of ever more powerful and high-performing charging stations. In this context, CONSYSTEM stands out as an industry leader, presenting the new REG1K0110U 40kW power module for DC Fast Chargers.

This power supply offers a conversion power of 40kW across a voltage range of up to 1000V. But that’s not the only thing that makes the REG1K0110U a product of great interest in its category.

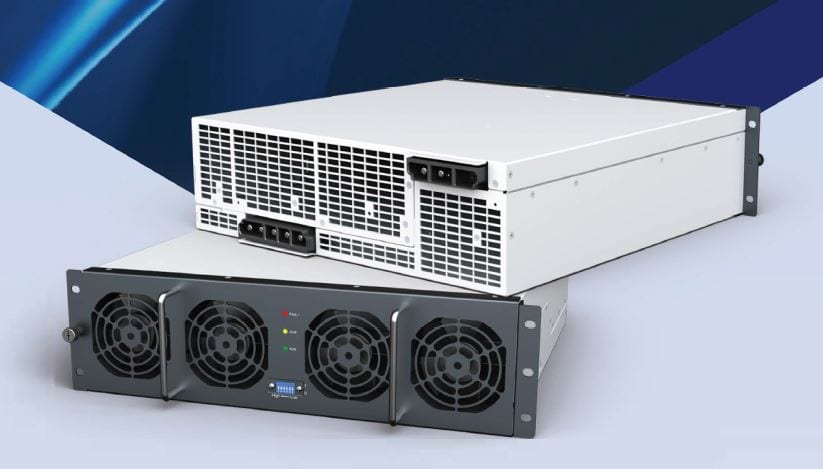

This module was specifically designed by Infypower for the e-mobility sector, with a constant DC output power of 40 kW and a variable output voltage from 150 Vdc to 1000 Vdc, capable of adapting to most electric vehicles on the market. Thanks to its compact dimensions (110 mm x 385 mm x 390 mm), it offers high power density, making it ideal for fast charging stations.

The REG1K0110U power module has high efficiency (≥95%) at full load, stand-by power consumption below 12W and minimal fan noise (<65dB). It also features several alarm and protection functions, including the ESTOP function for emergency shutdown, and has obtained CE & TUV-US certifications, attesting compliance with the EN IEC 61851-21-2:2001 safety standards.

The REG1K0110U power module is equipped with a CAN bus 2.0 communication interface, which allows up to 48 modules to be connected in parallel, increasing the power and flexibility of the DC charging station and the scalability of the solution. The module also supports hot-plug functionality, which allows modules to be easily replaced without interrupting the operation of the charging station.

The REG1K0110U power module is the ideal solution for DC charging stations, as it adapts to different types of stations, charging modes, scenarios and environments. Consystem offers dedicated technical assistance in this regard, thanks to technical specialists dedicated from design-in through to after-sales support.

Innovative%20and%20efficient%20solution,[]Exceptional%20performance,Flexibility%20and%20scalability%3A,Safety%20and%20reliability,Adaptability%20and%20versatility

Maximum%20DC%20output%20power%20of%2040kW,High%20efficiency%20(%E2%89%A595%25)%20at%20full%20load,CAN%20bus%202.0%20communication%20interface,CE%20%26%20TUV-US%20certifications,Adapts%20to%20different%20types%20of%20charging%20stations

Variable%20output%20voltage%20from%20150Vdc%20to%201000Vdc%2C%20adaptable%20to%20most%20electric%20vehicles%20on%20the%20market,Stand-by%20power%20consumption%20below%2012W,Ability%20to%20connect%20up%20to%2048%20modules%20in%20parallel,Compact%20and%20robust%20design,Compatible%20with%20different%20charging%20modes

High%20power%20density%20in%20a%20compact%20size%20(110%20mm%20x%20385%20mm%20x%20390%20mm),Minimal%20fan%20noise%20(%3C65dB),Multiple%20alarm%20and%20protection%20functions%2C%20including%20the%20ESTOP%20function%20for%20emergency%20shutdown,Hot-plug%20function%20for%20easy%20module%20replacement,Ideal%20for%20any%20scenario%20and%20environment

Choose the REG1K0110U power module and discover the future of electric charging!
